產品特點
1、清理效果好,除雜效率高:除大雜效率≥99%,大雜中不含有完好飽滿顆粒或凈料;
2、采用水平臂篩筒。篩筒分進料段和出料篩理段,分別選用不同的篩孔組合,能得到理想的篩理效率;
3、采用逆向進料方式,篩筒出料段設有螺旋,增加了實際篩理長度,達到充分的篩理效果,且有效防止雜質中帶有凈料;
4、采用內部篩理、外部刷子清理結構。纖維類雜質和稻桔在篩理時呈團狀經導向螺旋排出,可靠地進行自動清理;
5、動力小、產量高,運轉平穩可靠,換篩維修方便,結構緊湊,占空間??;
6、廣泛適用于飼料、油脂、面粉、碾米、糧倉等食品及化工等行業的原輔料的初清整理工序。
主要技術及性能參數
型 號 參 數 | SCY50 | SCY63 | SCY80 | SCY100 |
產量(t/h) | 10-20 | 20-40 | 40-60 | 60-80 |
動力 | 0.55 | 0.55 | 0.75 | 1.5 |

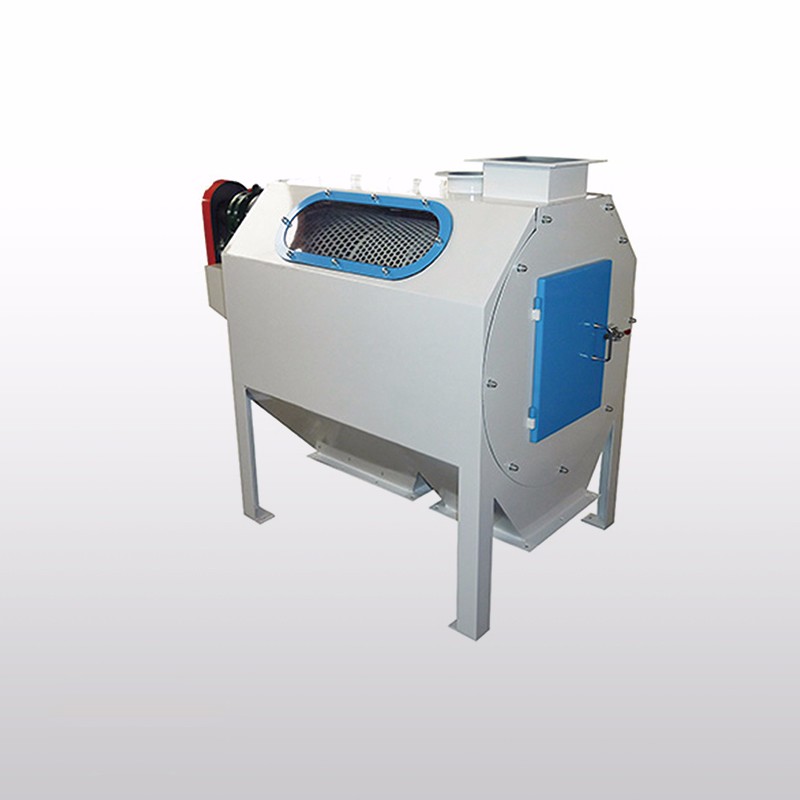

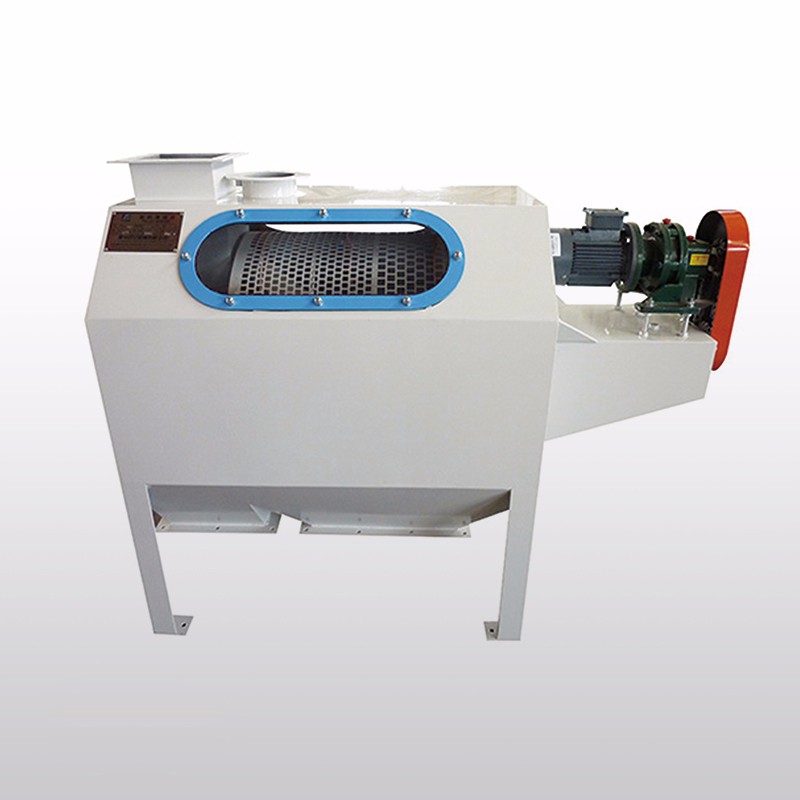

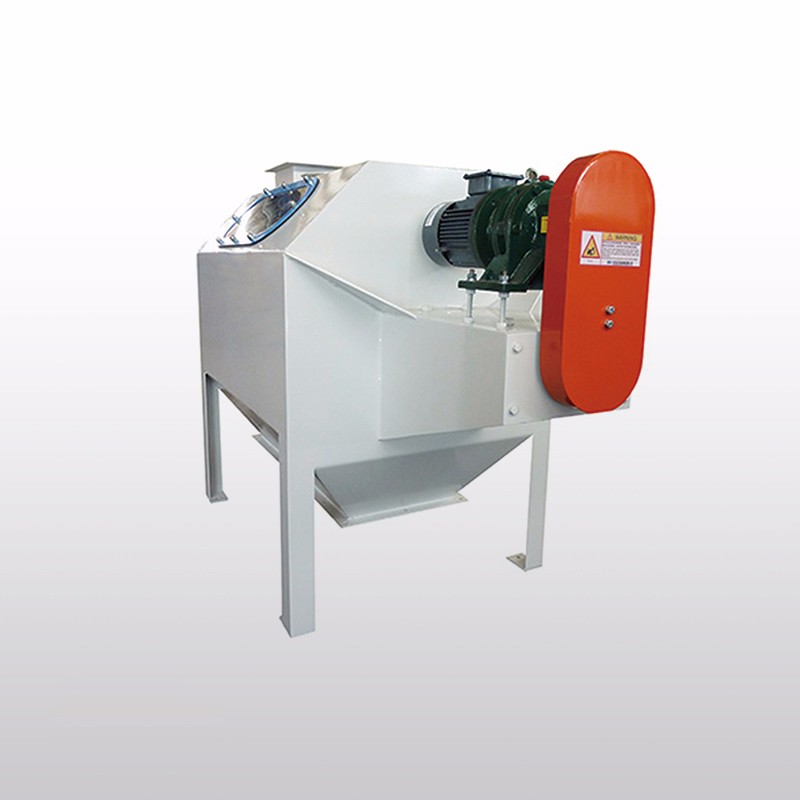

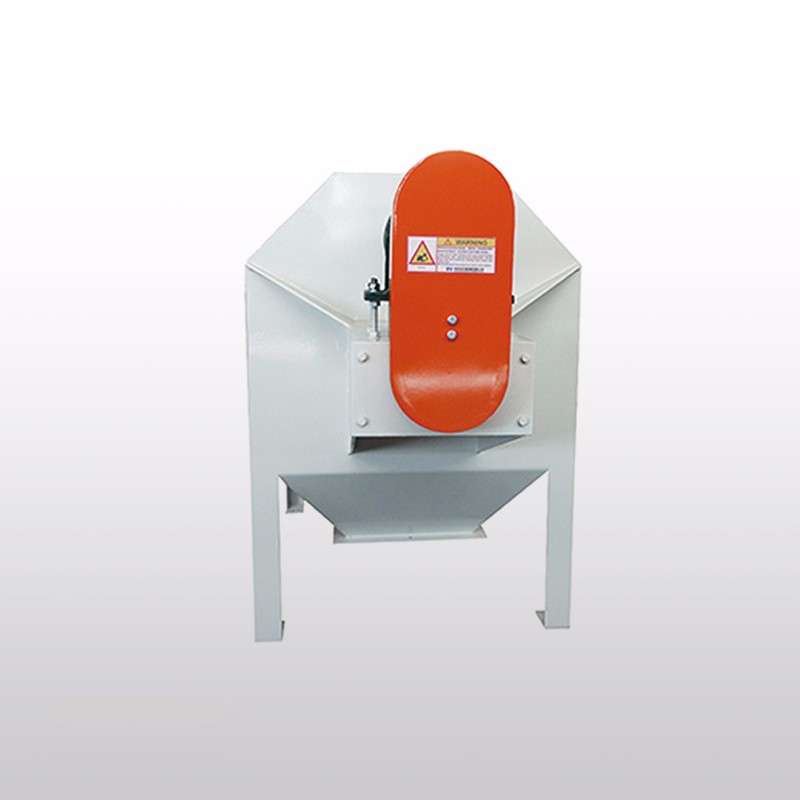

SCY Series Drum Cleaner
SCY系列圓筒初清篩
Features
1. It has good cleaning effect and high impurities removing efficiency. The efficiency of removing big impurities is higher than 99%. The big impurities do not contain complete granules or clean materials;
2.Horizontal cantilever screen cylinder is adopted. Screen cylinder is divided into feeding section and discharging-sieving section. The use of different combination of screen holes can get ideal sieving efficiency;
3.Adverse feeding type is adopted. The discharging section of screen cylinder is fitted with screw, which increases actual sieving length, reaches sufficient sieving effect and effectively prevents impurities from carrying clean materials;
4.The structure of inner sieving and outer brush cleaning is adopted. The fiber impurities and paddy straw are discharged in the shape of ball through guide screw and are cleaned automatically and reliably;
5.It has low power, high capacity, smooth and reliable running, convenient screen replacing and maintenance , compact structure and less space covered;
6.It is widely used for pre-cleaning of raw materials in the industries of feed, oil, flour, rice milling, grain warehouse, food, etc.
Main Technical Parameters
Model Parameters | SCY50 | SCY63 | SCY80 | SCY100 |
Output(t/h) | 10-20 | 20-40 | 40-60 | 60-80 |
Power(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
