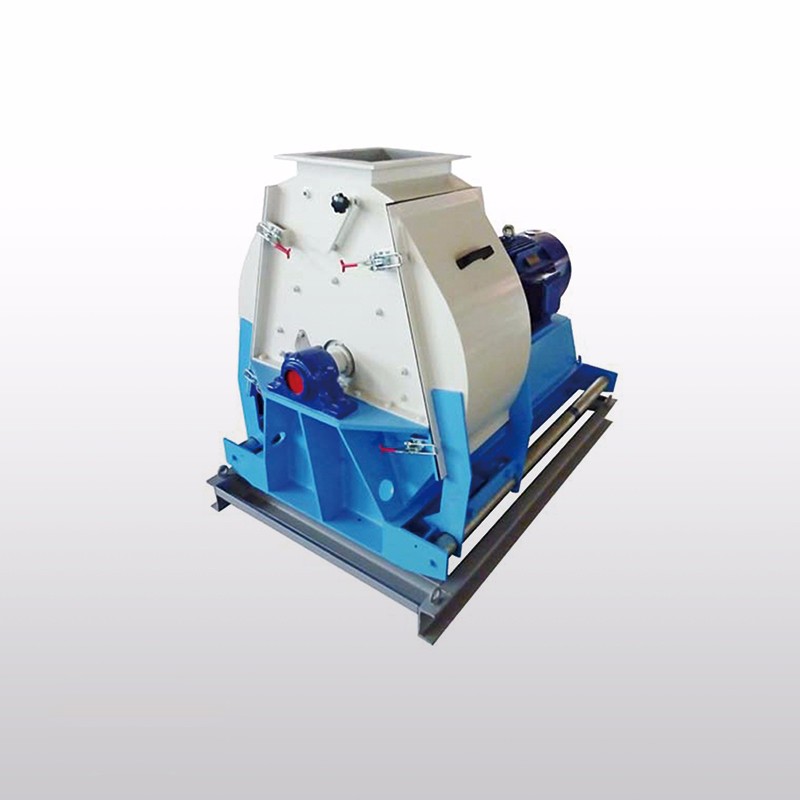

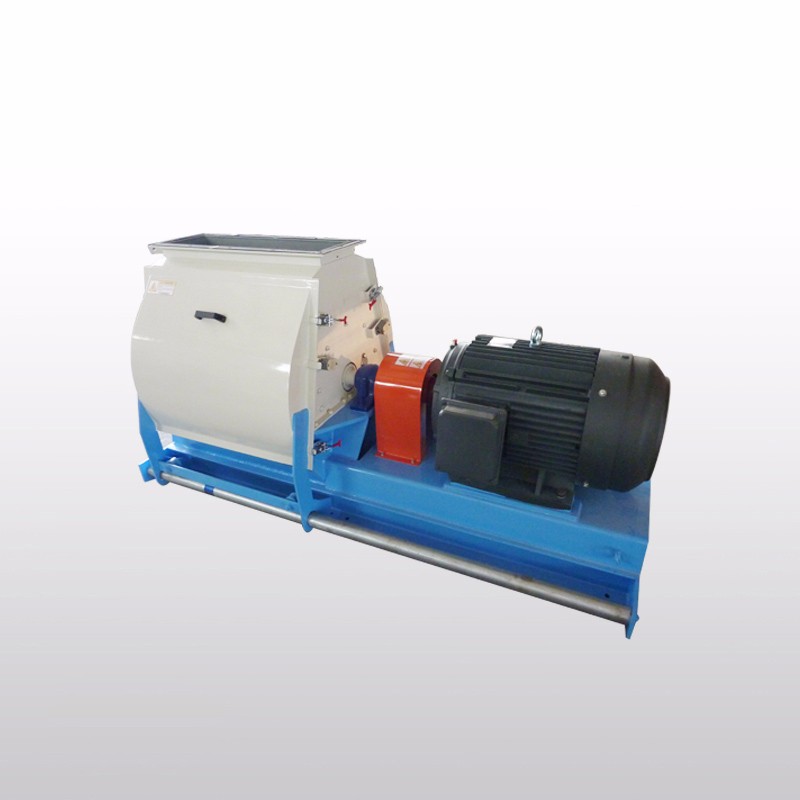

SFSP668系列水滴型寬式細粉碎機

http://njmboo.cn/uploadfiles/107.151.154.110/webid1399/source/201910/157198368931.jpg
    • SFSP668系列水滴型寬式細粉碎機
    • SFSP668系列水滴型寬式細粉碎機
    • SFSP668系列水滴型寬式細粉碎機
    • SFSP668系列水滴型寬式細粉碎機
    • SFSP668系列水滴型寬式細粉碎機
    • SFSP668系列水滴型寬式細粉碎機
產品詳情

產品特點

1、寬式微細粉碎機被大、中型畜禽和水產飼料企業用于粉碎原料;同時也適用于牧草粉碎和制藥行業的細微粉碎??煞鬯楦鞣N顆粒狀飼料原料,如玉米、高梁、麥類、豆類、破碎后的餅粕以及其他物料;
2、作為水滴型粉碎機的派生系列,與普通粉碎機相比,效率提高45%-90%,是普通錘片粉碎機的替代機型;
3、裝配¢0.8、¢1毫米篩網條件下該機能滿負荷生產出精細的水產料并大大改善堵塞現象;不需換篩就可以實現粗、細兩種粉碎;
4、通風合適能使物料穿過篩孔速度加快,粉碎室溫度降低,物料溫度較低,有效提高產量。

主要技術及性能參數

參 數

型 號

轉子直徑

粉碎室寬度

主軸轉速(r/min)

錘片線速(m/s)

錘片
數量

配用動力

正常吸風量(m3/min)

產量(t/h)

一般粉碎

細粉碎

SFSP668-Ⅰ

660

380

2970

94

56

22/30

30

34

5-6

SFSP668-Ⅱ

660

450

2970

94

64

45/55

40

45

7-12

SFSP668-Ⅲ

660

600

2970

94

88

55/75

48

53

10-15

SFSP668-Ⅳ

660

750

2970

94

112

90/110

60

66

15-20

注:以上指標是滿足以下情況時的指標:原料為玉米、水份不大于14%,容量不低于0.72t/m3,粉碎機篩板直徑為¢3mm,開孔率不低于33%。

Features:

1. It is used for grinding raw materials of large and medium livestock and aqua feed mills. It can also be used for grass and pharmacy fine grinding. The granular raw materials, such as corn, sorghum, wheat, beans, etc can be ground;
2. It is derived from the tear circle type hammer mill and efficiency can be improved by 45%-90% compared to universal hammer mill;
3. It can produce qualified aqua feed under full load with ¢0.8、¢1 screen and reduce jam significantly. Both coarse and fine grinding can be completed without changing screens;
4. The right aspiration can make materials go through screen quickly, reduce temperature of grinding chamber and increase output effectively.

Main Technical Parameters:

Parameters

Model

Dia. Of Rotor

(mm)

Width Of Grinding Chamber (mm)

Speed Of Rotor (r/min)

Speed Of Beater (m/s)

No. Of Beater (pc)

Power (kw)

Aspiration (m3/min)

Output(t/h)

Coarse

Fine

SFSP668-Ⅰ

660

380

2970

94

56

22/30

30

34

5-6

SFSP668-Ⅱ

660

450

2970

94

64

45/55

40

45

7-12

SFSP668-Ⅲ

660

600

2970

94

88

55/75

48

53

10-15

SFSP668-Ⅳ

660

750

2970

94

112

90/110

60

66

15-20

Re: The above indexes are those when meeting the following conditions: raw material: corn, moisture content not higher than 14%, density not lower than 0.72t/m3, screen: hole diameter ¢3mm, hole-opening rate not less than 33%.
