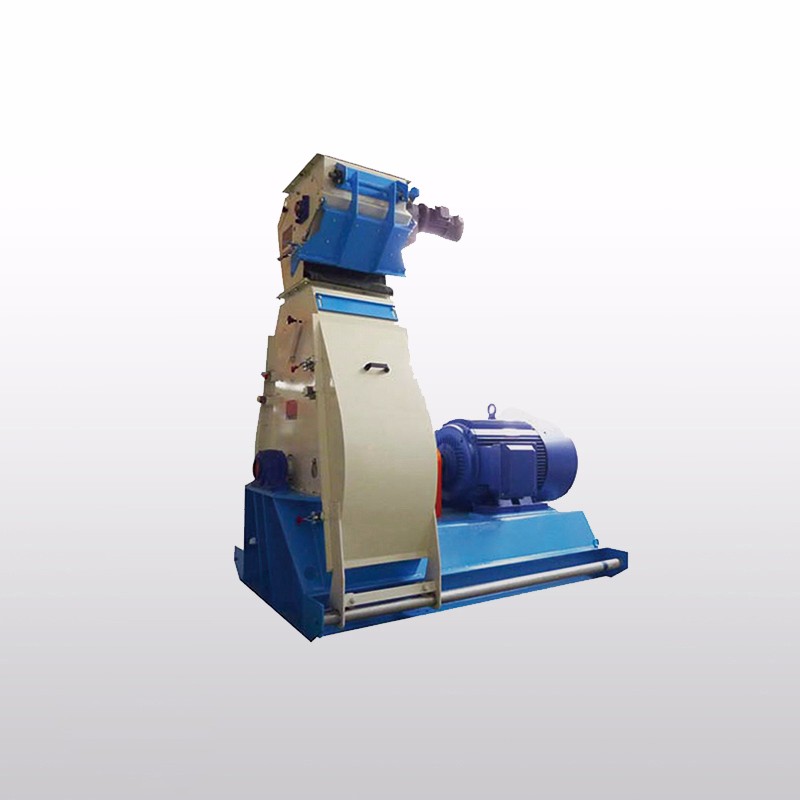

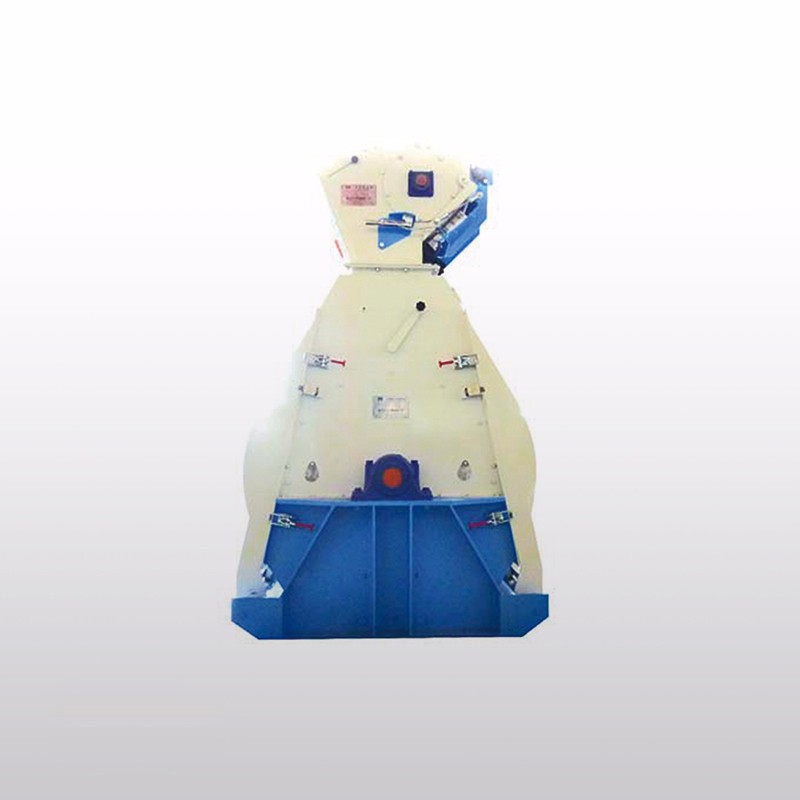

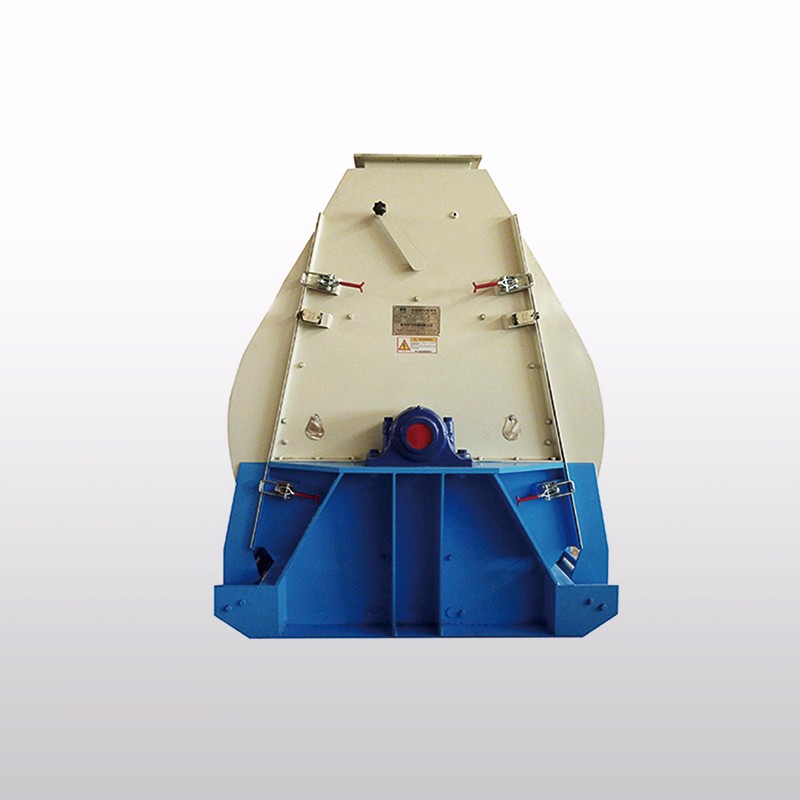

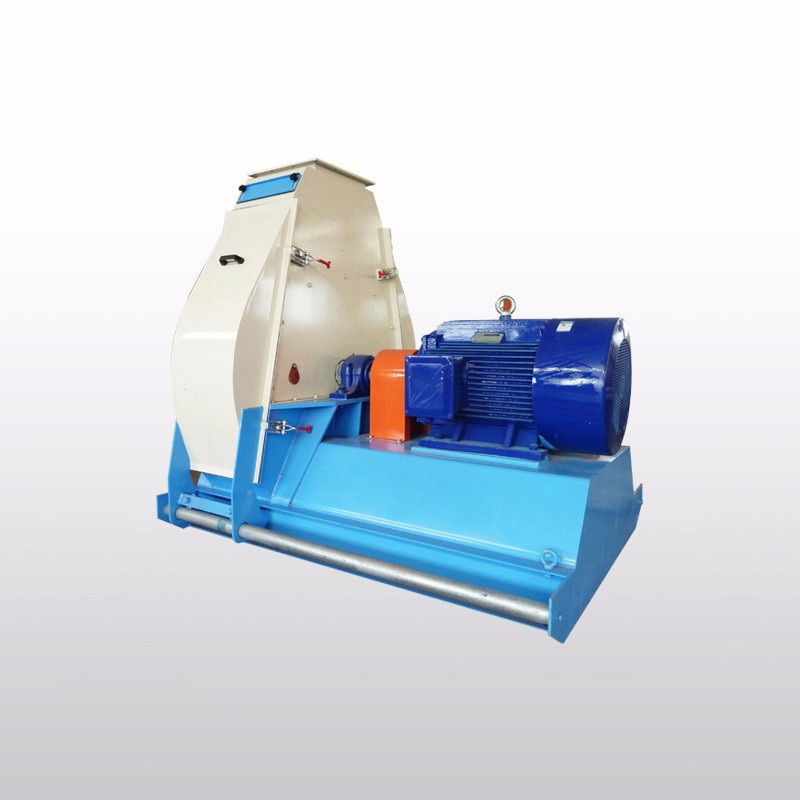

SFSP998系列水滴型粉碎機

http://njmboo.cn/uploadfiles/107.151.154.110/webid1399/source/201910/157198436267.jpg
    • SFSP998系列水滴型粉碎機
    • SFSP998系列水滴型粉碎機
    • SFSP998系列水滴型粉碎機
    • SFSP998系列水滴型粉碎機
    • SFSP998系列水滴型粉碎機
產品詳情

產品特點

1、粉碎室為水滴型,有效消除粉碎過程中的環流現象,產量高;
2、粉碎室底部設置“U” 型二次粉碎機構,更進一步提高產量,粉碎粒度更均勻;
3、轉子經精確的動平衡校驗,設備噪音低,運行平穩;
4、通過調節錘篩間隙,實現粗粉碎或細粉碎,做到一機兩用;
5、新型蛇形連軸器直聯傳動,補償位移大,有效避免軸承發熱現象;
6、真空焊接硬質合金的錘片;
7、關鍵部位采用進口部件,壽命長,成本低;
8、全開式操作門,方便檢修及更換篩片;
9、廣泛應用于各類飼料廠、油廠、酒精廠、檸檬酸廠等的使用。

主要技術及性能參數

型 號

參 數

SFSP998-Ⅰ

SFSP998-Ⅱ

SFSP998-Ⅲ

SFSP998-Ⅳ

轉子直徑

1200

1200

1200

1200

粉碎室寬度 (mm)

300

400

500

600

主軸轉速

1480

1480

1480

1480

配用動力

55/75

75/90/110

110/132/160

200/220/250

產量(t/h)

10-15

12-20

25-35

38-50

注:以上指標是滿足以下情況時的指標:原料為玉米、水份不大于14%,容量不低于0.72t/m3,粉碎機篩板直徑為¢3mm,開孔率不低于33%。

Features:

1. The grinding chamber is of tear circle shape, effectively eliminating the circular flow in the grinding process and getting higher capacity;
2. The bottom of grinding chamber is fitted with U-shape double grinding structure, further improving the capacity with evener particle size;
3. All of our rotors pass an accurate dynamic balancing test, resulting in low noise and smooth running.

4. Both coarse and fine grinding can be completed by adjusting the distance between the beater and the screen;
5. New type S-shape coupling directly connecting driving results in big offset travel and effectively avoid the heat from the bearing;
6. Beater blade edge is vacuum-welded by special alloy steel, resulting in long service life;
7. The imported components are used for key parts, resulting in long service life and low maintenance cost;
8. The moving full-wide operation door facilitates maintenance and replacing of beater;
9. It is widely used in various feed mills, oil plants, alcohol plants, citric acid plants, etc.

Main Technical Parameters:

Model

Parameters

SFSP998-Ⅰ

SFSP998-Ⅱ

SFSP998-Ⅲ

SFSP998-Ⅳ

Dia. Of Rotor(mm)

1200

1200

1200

1200

Width Of Grinding Chamber (mm)

300

400

500

600

Speed Of Rotor(rpm)

1480

1480

1480

1480

Power(kw)

55/75

90/110

110/132/160

180/200/220

Output(t/h)

10-15

12-20

25-35

38-50

Re: The above indexes are those when meeting the following conditions: raw material: corn, moisture content not higher than 14%, density not lower than 0.72t/m3, screen: hole diameter ¢3mm, hole-opening rate not less than 33%.
