產品特點
1、熱風在干燥機內的流量可根據物料的特性和干燥要求進行改變,從而達到很好的干燥效果;
2、>50%的熱風可循環使用,箱體采用保溫,節省能耗和降低生產成本;
3、帶有自動清掃機構,底部粉料碎粒自動清理;
4、雙層履帶帶動物料運動,從而減少了物料破損現象;
5、適用于水產料、膨化料的干燥處理。
主要技術及性能參數
型號 | 產量(t/h) | 干燥面積(m2) | 帶寬 | 功率 | 失水率(%) |
SHGW120×2 | 1.5-2 | 20 | 1.2 | 28 | 15 |
SHGW180×2 | 3-4 | 30 | 1.8 | 36 | 15 |
SHGW240×2 | 4-5 | 40 | 2.4 | 48 | 15 |

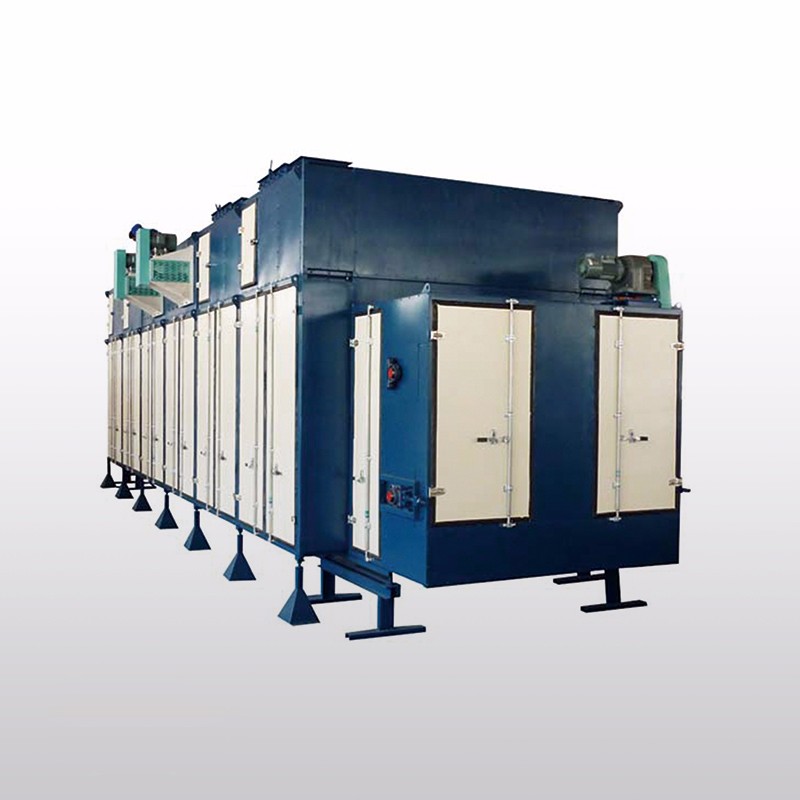

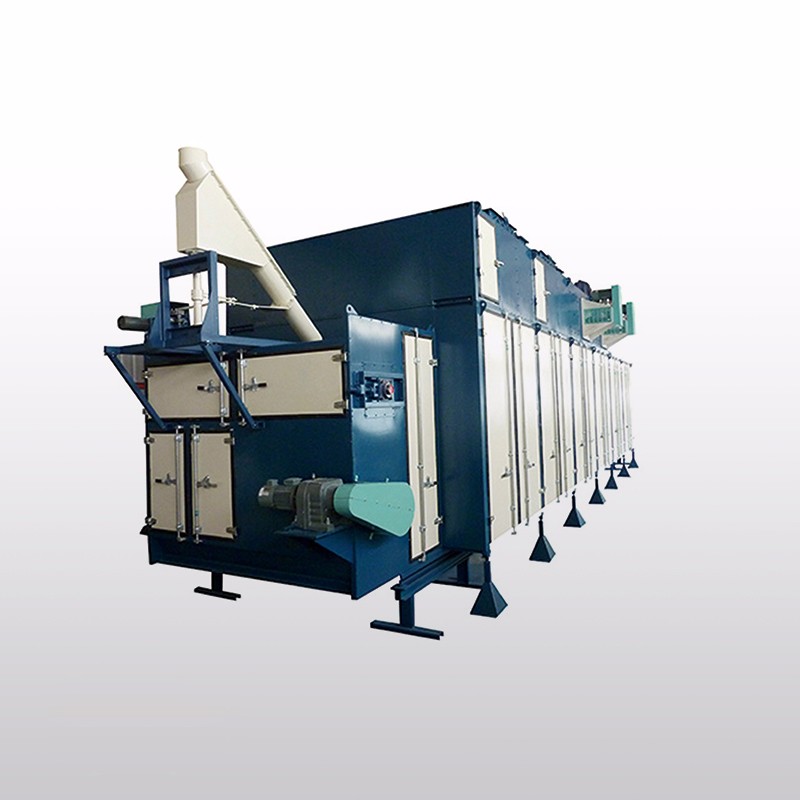

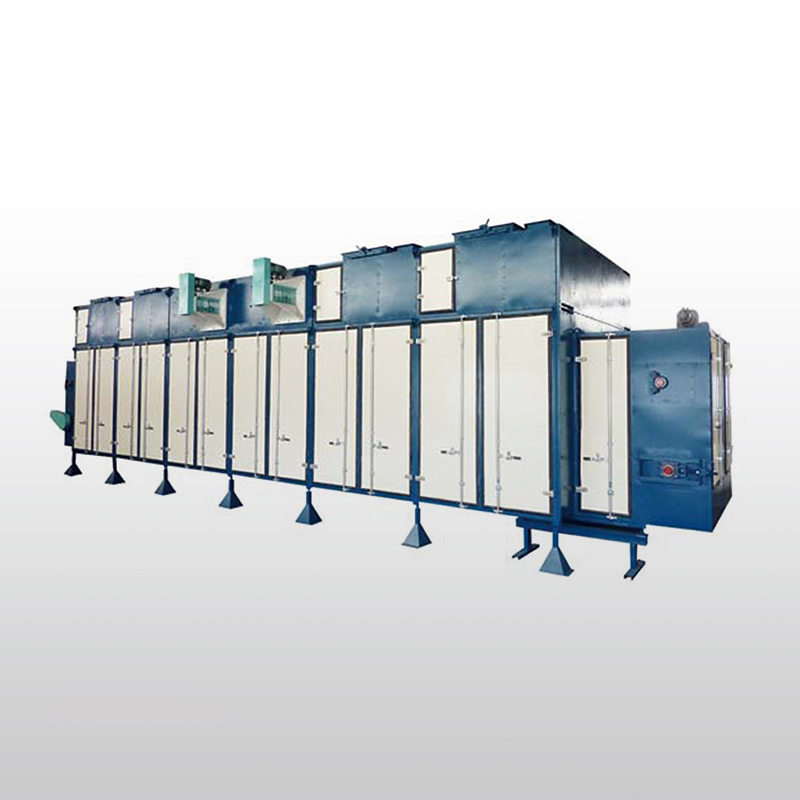

SHGW series horizontal circumfluent dryer
SHGW系列臥式環流干燥機
Features
1、Adopt international advanced swing laying bead, even laying and even moisture of feed.
2、Tracks are made from stainless steel punched-plate, no sticking, anti-corrosion and cleaning.
3、The machine is equipped two tracks, materials will come and go four times on the tracks, which make sufficient use of space, maximum improve drying efficient and evenly.
4、Built-in heating and hot air circulative using system, which reduce stream consumption and cost.
5、Entrances and exits of air are designed in different during sections, which control the temperature and moistures efficiently. Drying speed is adjustable, high quantity after drying.
6、Adopt modularization designation, length and direction can be adjusted to demand, you can choose the tracks of 1.2m, 1.8m or 2.4m.
Main Technical Parameters
Model | Capacity (T/H) | Drying area (m2) | width of Belt (m) | Power (KW) | Water removal(%) |
SHGW120×2 | 1.5-2 | 20 | 1.2 | 28 | 15 |
SHGW180×2 | 3-4 | 30 | 1.8 | 36 | 15 |
SHGW240×2 | 4-5 | 40 | 2.4 | 48 | 15 |
