產品特點:
1、雙軸差速不銹鋼調質器,多達12點的蒸汽及6點液體添加;
2、強力齒輪箱,可承受400馬力扭矩及推力,帶循環冷卻系統;
3、機筒內嵌耐磨襯套,外有不銹鋼夾套,可加熱/冷卻,還能直接向機筒內注入蒸汽或冷水;
4、方便快捷的模頭更換機構及可再線調節的切割裝置;
5、特殊耐磨材料制造的螺旋,大至18的長徑比可保證連續穩定生產各種粒徑沉/浮水飼料。
主要規格及技術參數:
參數 型號 | 主機功率 (kw) | 供料動力 (kw) | 調質動力 (kw) | 切割動力 (kw) | 產量 (t/h) |
SPHS95S | 55 | 1.5 | 5.5 | 3 | 0.5~1.2 |
SPHS98S | 75 | 1.5 | 5.5 | 3 | 0.6~1.6 |
SPHS118S | 90 | 1.5 | 11 | 4 | 0.8~2.0 |
SPHS120S | 110 | 1.5 | 11 | 4 | 1.5~2.2 |
SPHS145S | 132~160 | 1.5 | 15 | 5.5 | 2.0~4.0 |
SPHS148S | 160~200 | 1.5 | 15 | 5.5 | 3.0~6.0 |
SPHS150S | 200~315 | 2.2 | 18.5 | 5.5 | 8.0~10.0 |

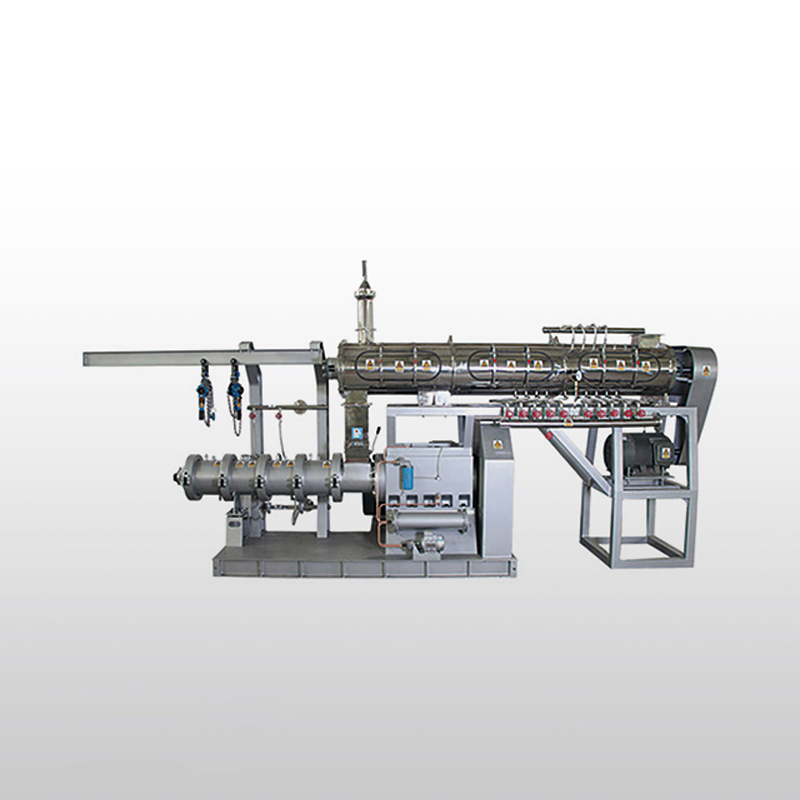

SPHS-S Series Twin-screw Steam Extruder
SPHS-S系列雙螺桿濕法膨化機
Feature
1. Stainless steel DDC with 12 steam injectors and 6 liquid nozzles.
2. The gearbox can stand strong torque and thrust up to 400hp.
3. Jacket design barrel with liner can achieve heating/cooling function. Steam and water can also be injected directly into the barrel.
4. Screw is made of special anti-wear alloy with L/D ratio up to 19.5:1 that assures smoothly production for all kinds of sinking/floating feed.
5. It can deal with different formulation. It can produce pellet with die diameter from 0.8mm to 10mm.
6. Fast replacing mechanism for die and screw and on-line adjustment for cutter.
Main Technical Parameters
Parameters Model | Main Power (kw) | Feeder Power (kw) | Cutter Power (kw) | Conditioner Power(kw) | Capacity (t/h) |
SPHS68S | 55/75 | 1.5 | 3 | 5.5 | 0.5~1.8 |
SPHS98S | 90/110 | 1.5 | 4 | 11 | 1.5~3 |
SPHS128S | 160/200 | 2.2 | 5.5 | 18.5 | 3~7 |
SPHS148S | 250/315 | 2.2 | 7.5 | 22 | 6~12 |
