產品特點
1、該機是生產顆粒飼料的關鍵設備,適用于年產1500噸級的小型飼料廠、水產養殖場和專業戶生產禽、畜、水產顆粒飼料;
2、該機吸取了國內外制粒設備的優點,結合我公司多年設計制造經驗研制而成的小型顆粒飼料壓制機;
3、該機喂料系統采用無級變速電機控制,調速方便,主傳動系統采用齒輪傳動;
4、具有產量高、噪音小、耗能低,工作壽命長,操作維護簡便等優點,并設有磁選除鐵和過載保護裝置,工作安全可靠。
主要技術及性能參數
主機功率 | 15 | 生產能力(t/h) | 0.5-1.5 |
喂料絞龍功率 | 0.37 | 調質器功率 | 1.5 |
環模直徑 | 250 | 顆粒規格 | 2- 18 |

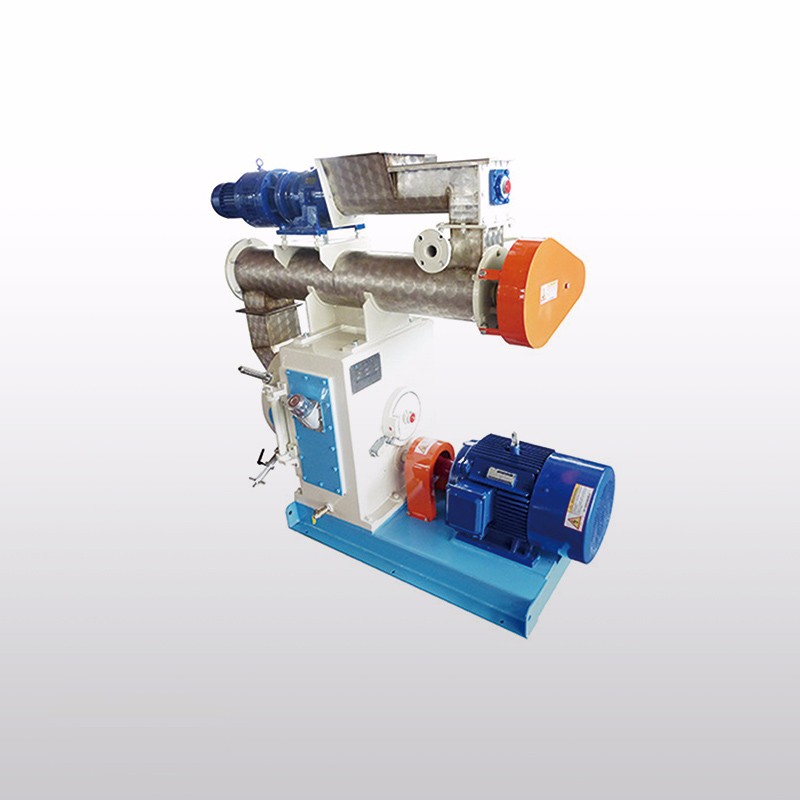

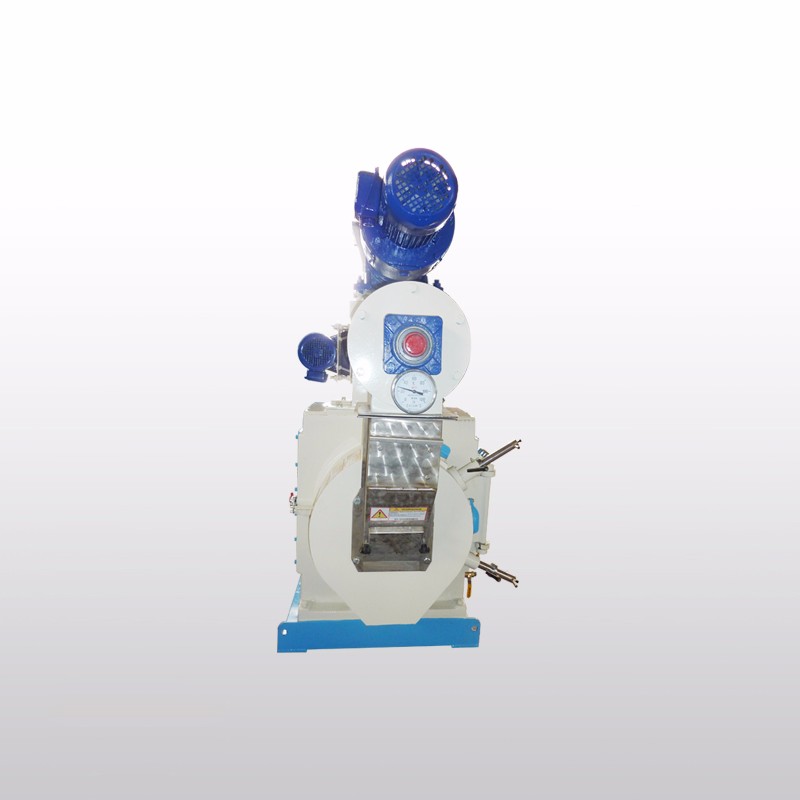

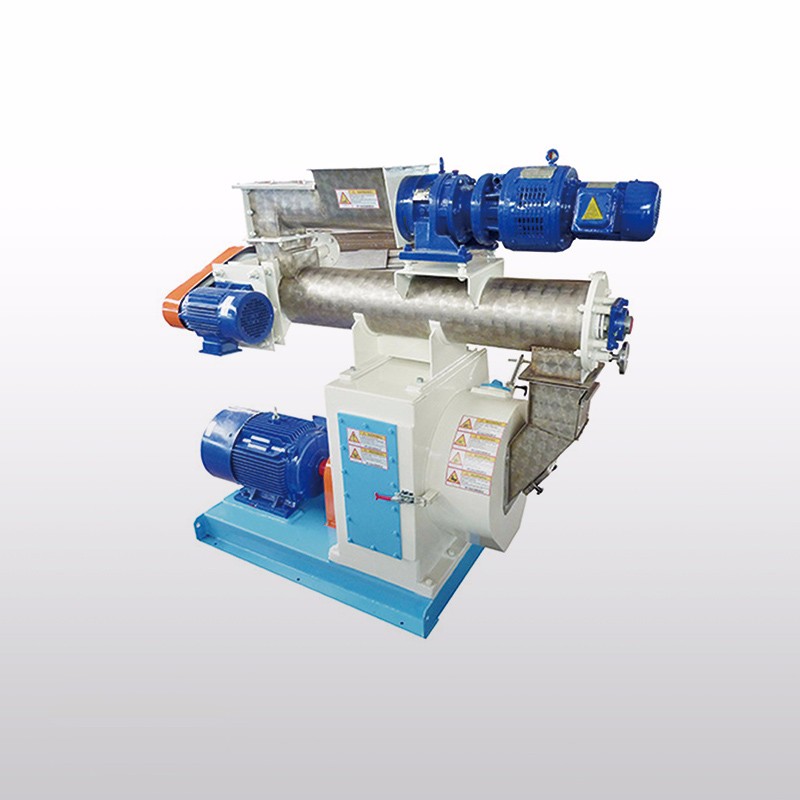

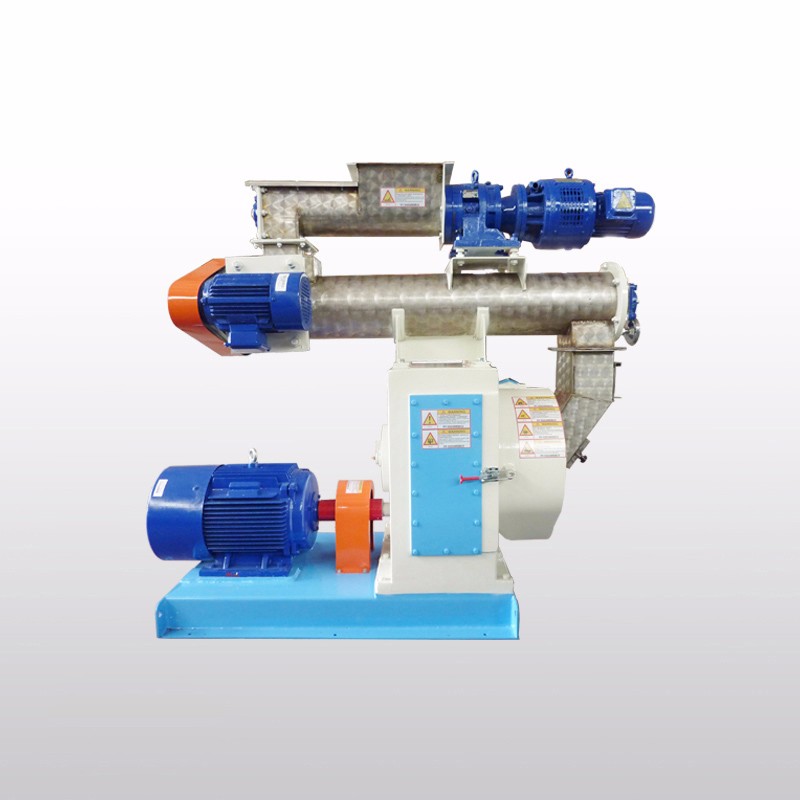

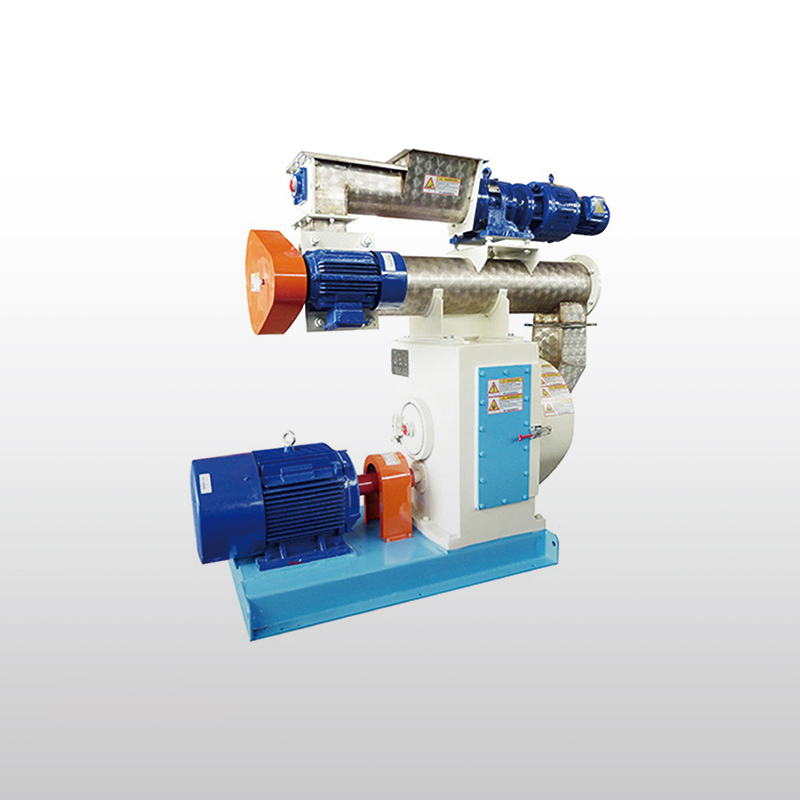

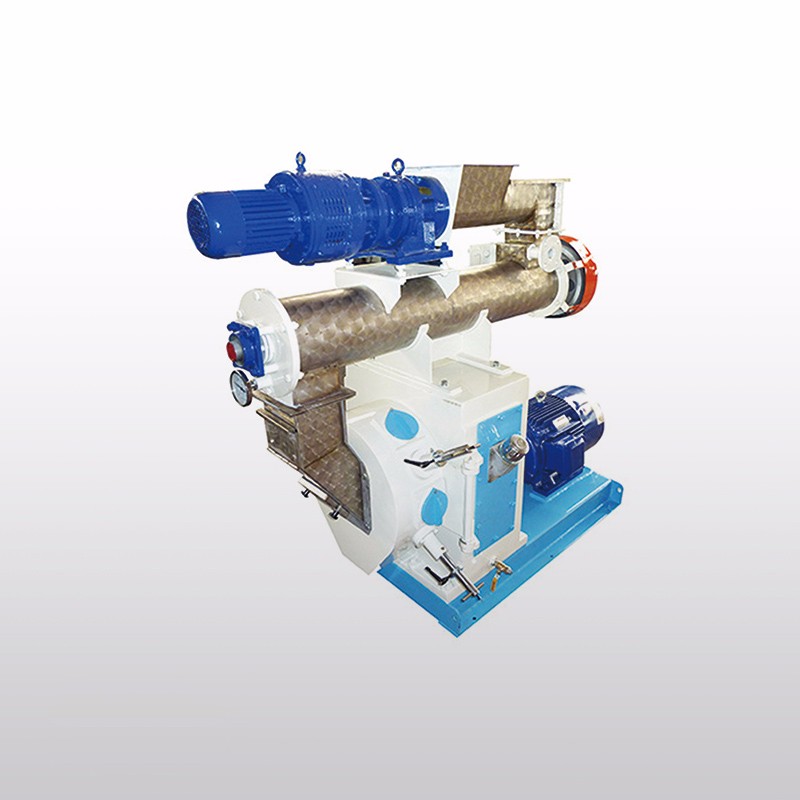

SZLH250 Livestock Feed Pellet Mill
SZLH250畜禽型環模制粒機
Features
1. It is key equipment for production of pellet feed and adapts to produce small feed mill with capacity under 1500TPY;
2 The pellet mill is built with the best materials and design features from companies both domestic and abroad, all of that technology combined with our experience makes our machines cutting edge ;
3. The feeder is controlled by variable speed drive, which is easy for adjustment. The main driving system is a gearbox;
4. It gives you the advantages of high output, low noise, low power consumption, long service life, ease of maintenance. And it is with magnet and overload protection system which makes it safe and reliable.
Main Technical Parameter
Main Power(kw) | 15/22 | Capacity(t/h) | 0.5-2.0 |
Power Of Feeder(kw) | 0.37 | Power Of Conditioner(kw) | 1.5 |
ID Of Die(mm) | ?250 | Pellet Size(mm) | ?2-?18 |
