產品特點
1、機身為W型臥式貝殼狀混合室,雙軸多槳轉子, 頂部為噴霧系統(管道和噴嘴),可適應各種輕重物料的混合,有效提高液體的霧化效果,防止結團;
2、特殊設計的排料機構,開門角度大,排料迅速,殘留量少。密封性好,確保不漏料;
3、混合速度快,均勻度高,使得物料在失重和同質狀態下仍不受純度、密度和填充系數的影響;
4、廣泛用于飼料、糧食、食品、化工、醫藥、農藥等行業中粉狀、顆粒狀、片狀、塊狀、雜狀及粘稠狀物料的混和。
主要技術及性能參數
參 數 型 號 | 有效容積(m3) | 每批混合量 | 每批混合時間 | 混合均勻度(CV≤%) | 動力 |
SSHJ0.2 | 0.2 | 100 | 45-120 (根據不同物料可適當延長時間) | 5 | 2.2 |
SSHJ0.5 | 0.5 | 250 | 5 | 5.5 | |
SSHJ1 | 1.0 | 500 | 5 | 15.0 | |
SHSJ2 | 2 | 1000 | 45-120 (根據不同物料可適當延長時間) | 5 | 18.5 |
SHSJ4 | 4 | 2000 | 5 | 30.0 | |
SHSJ7 | 7 | 3000 | 5 | 37.0 | |
SHSJ8 | 8 | 4000 | 5 | 45.0 |
Features

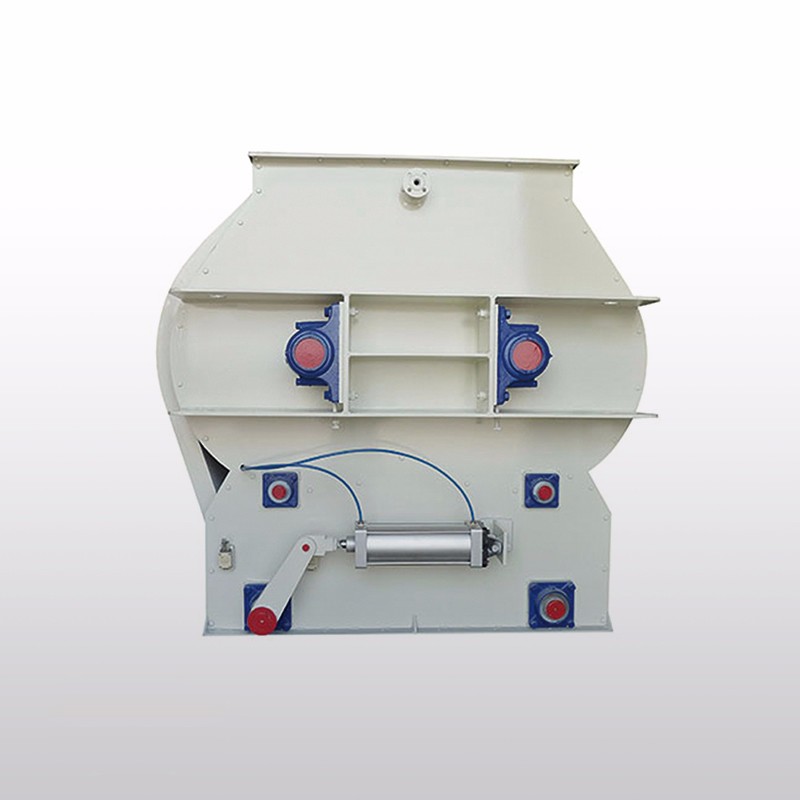

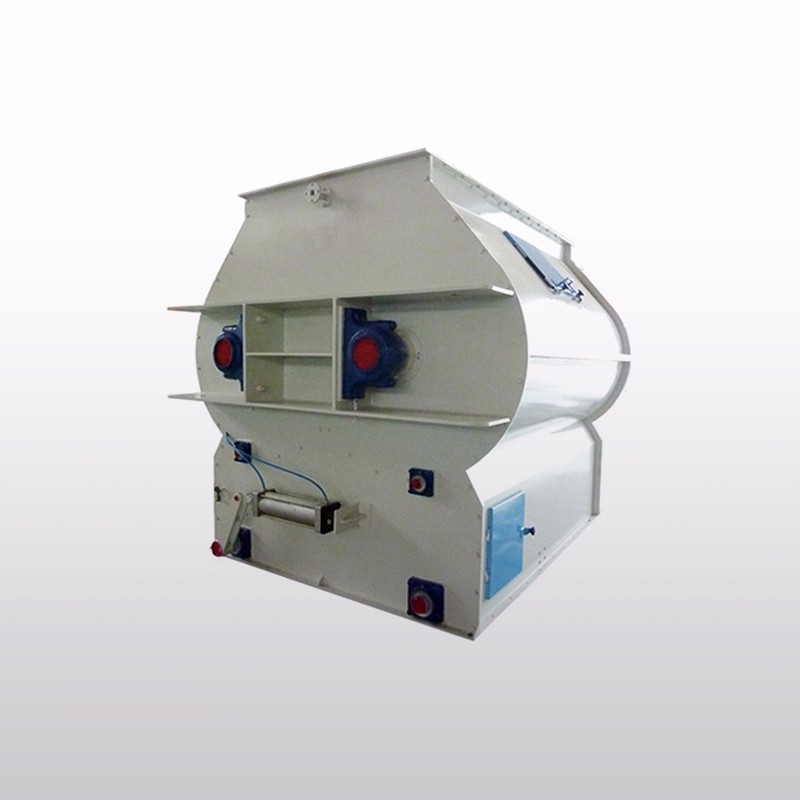

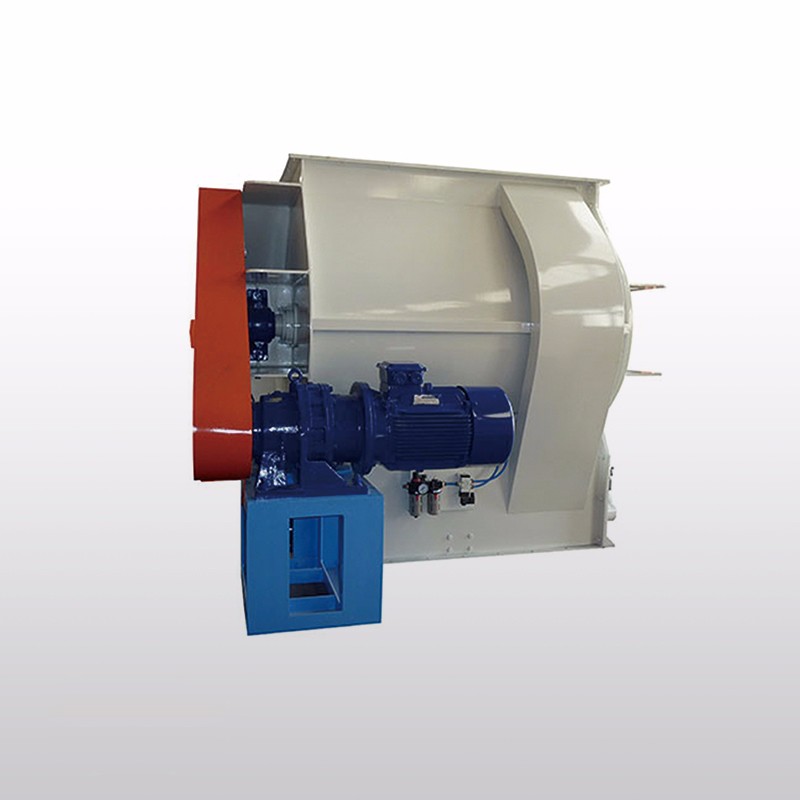

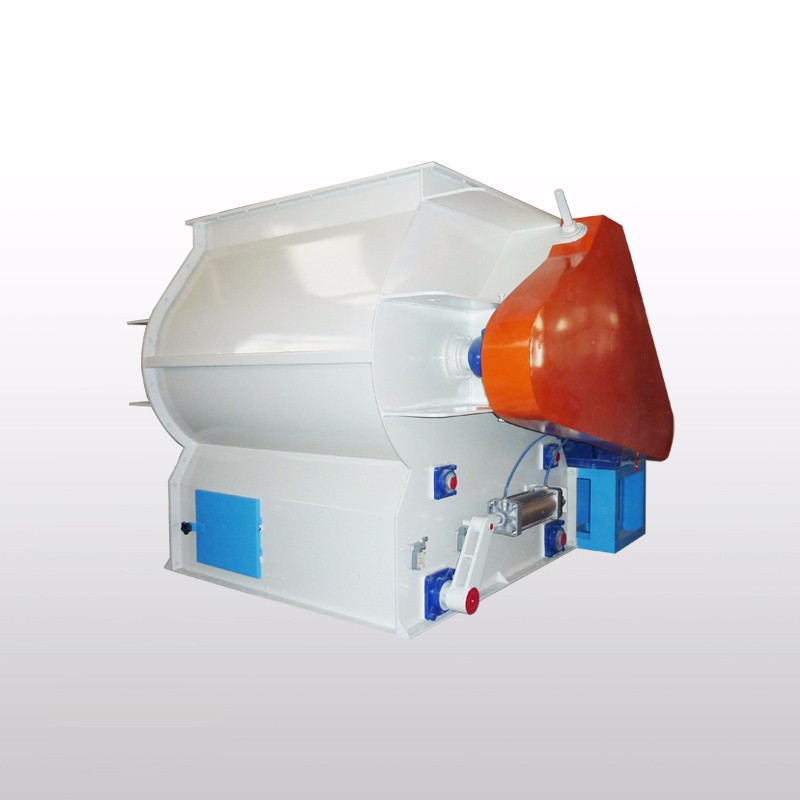

1. The mixing chamber is “W” horizontal shell shape, Double shafts and many paddles. The spraying system (spray nozzle fittings)which is on top of mixer can meet light and heavy bulk density materials mixing, improve the liquid atomizing and prevent from agglomerating;
2. Specially designed discharger has big door-opening angle and quick discharging with little residue. Good tightness and no products leaka≥
3. High mixing speed and high homogeneity. It makes materials mixed and is not influenced for bulk density, filling degree in state of loss weight;
4. It is widely used for mixing of powdered, granular, flaky, blocky, irregular and sticky materials in the industries of feed, cereal, food, chemicals, medicines, pesticides, etc.
Main Technical Features
Parameters Model | Volume (m3) | Capacity/Batch (kg) | Mixing Time (s) | Homogeneity (CV≤%) | Power (kw) |
SHSJ0.2 | 0.2 | 100 | 45-120 (can be adjusted according to raw material) | 5 | 2.2 |
SHSJ0.5 | 0.5 | 250 | 5 | 5.5 | |
SHSJ1 | 1.0 | 500 | 5 | 11/15 | |
SHSJ2 | 2.0 | 1000 | 5 | 18.5 | |
SHSJ4 | 4.0 | 2000 | 5 | 30.0 | |
SHSJ6 | 6.0 | 3000 | 5 | 37.0 | |
SHSJ8 | 8.0 | 4000 | 5 | 45.0 |
