產品特點
1、利用逆流冷卻原理對高溫、高濕的顆粒進行冷卻,避免了冷風與熱料直接接觸而產生驟冷現象,因而能防止顆粒產生表面開裂,同時,由于采用閉風器進料,且進風面積大,因此冷卻效果顯著;
2、采用滑閥往復式排料機構,運動平穩、可靠,殘留?。?
3、能耗低、操作簡便;
4、冷卻后成品溫度不高于室溫+3℃~5℃;
5、適用于顆粒物料的冷卻。
主要技術及性能參數
型 號 參 數 | SKLN1.5 | SKLN2.5 | SKLN4 | SKLN6 | SKLN8 |
冷卻容積(m3) | 1.5 | 2.5 | 4.0 | 6.0 | 8.0 |
生產能力(t/h) | 3 | 5 | 10 | 15 | 20 |
冷卻時間 | 不少于10-15 | ||||
冷卻后料溫(℃) | 不高于室溫+3~5 | ||||
吸風量(m3/min.t) | 34 | ||||
配用動力 | 0.75 | 1.10 | 1.50 | 1.50 | 1.50 |
關風機動力 | 0.55 | 0.55 | 0.55 | 0.75 | 0.75 |

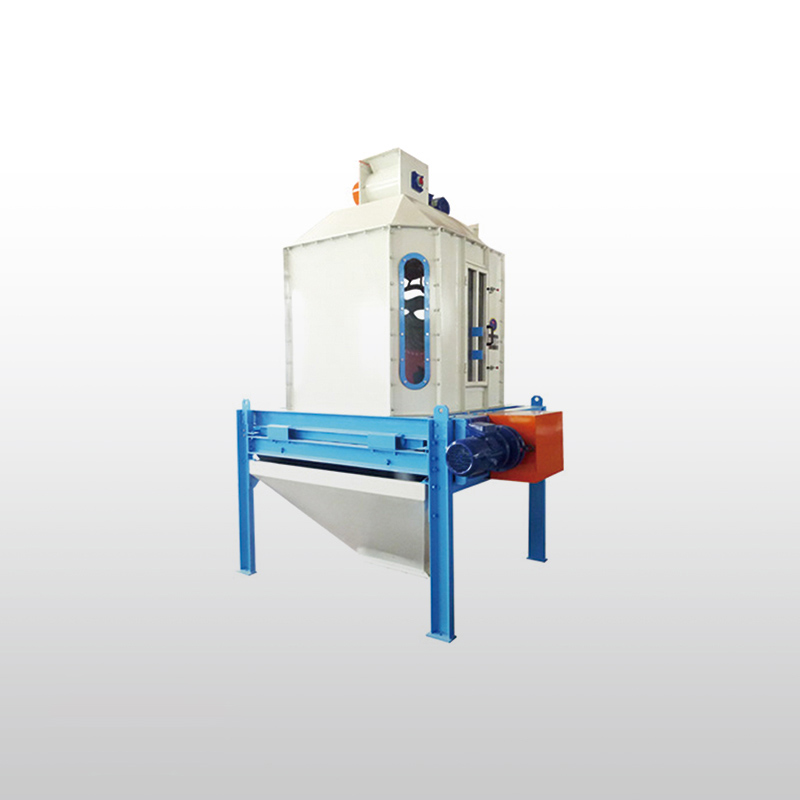

SKLN Series Counterflow Cooler
SKLN 系列逆流式冷卻器
Features
1. The counterflow cooling principle is adopted to cool the pellets with high temperature and moisture. Hot air touches hot pellets and cool air touches cool pellets so as to avoid the pellet surface crack caused by sudden cooling produced by direct touching between cool air and hot pellets. At the same time, the airlock is used for feeding and space of air inlet bigger, therefore it can get better cooling effects;
2.Slide reciprocating discharger has smooth and reliable discharging, low residue;
3.Low power consumption, ease of operation;
4.Pellet temperature after cooling is less than +3°C~5°C ambient temperature;
5. Capable of cooling pellets.
Main Technical Parameters
Model Parameters | SKLN1.5 | SKLN2.5 | SKLN4 | SKLN6 | SKLN8 |
Volume(m3) | 1.5 | 2.5 | 4.0 | 6.0 | 8.0 |
Capacity(t/h) | 3 | 5 | 10 | 15 | 20 |
Cooling time(min) | Less than 10-15Mins | ||||
Temperature after Cooling(°C) | Not higher than ambient temperature +3~5 | ||||
Aspiration(m3/min.t) | 34 | ||||
Power(kw) | 0.75 | 1.10 | 1.50 | 1.50 | 1.50 |
Power of Airlock (kw) | 0.55 | 0.55 | 0.55 | 0.75 | 0.75 |
