產品特點:
1. 是將大顆粒破碎成小顆粒的專用設備,可將各種規格的顆粒料破碎成0.6-1.5mm或1-2.5mm的顆粒;
2. 結構緊湊,雙輥結構,破碎均勻,粒度調節方便快捷;
3. 軋輥實行差動轉速,顆粒料在兩軋輥間受到擠壓、剪切、撕裂作用,從而達到理想的破碎效果;
4. 獨特的進料斗及旁路裝置既起到勻料作用,又起到對不需破碎的物料起旁流作用,旁流時通過行程開關實現自動停機;
5. 采用窄V皮帶傳動,傳動平穩,噪音低,工作可靠,操作方便。
主要技術及性能參數
型號 參數 | SSLG15×80 | SSLG15×100 | SSLG15×150 | SSLG20×170 |
產量(t/h) | 3-4 | 4-6 | 5-8 | 15-20 |
配用動力 | 4 | 5.5 | 7.5/11 | 11/15 |

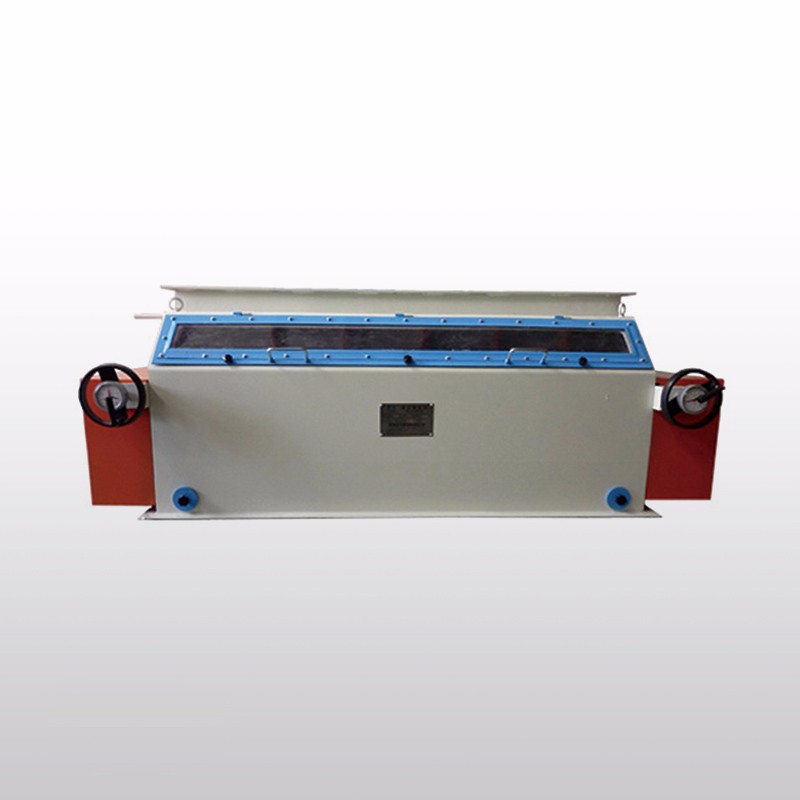

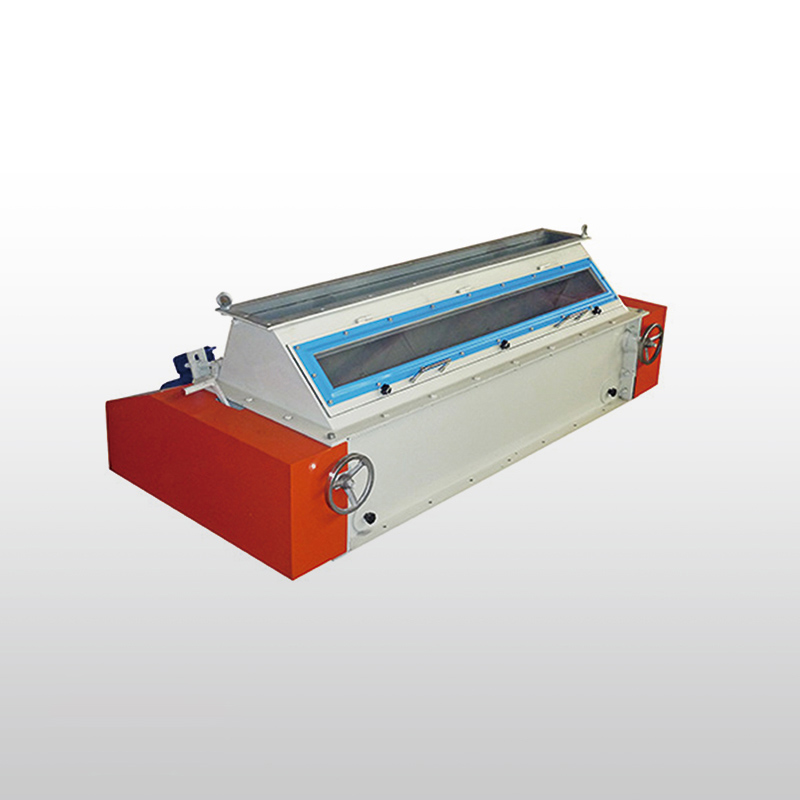

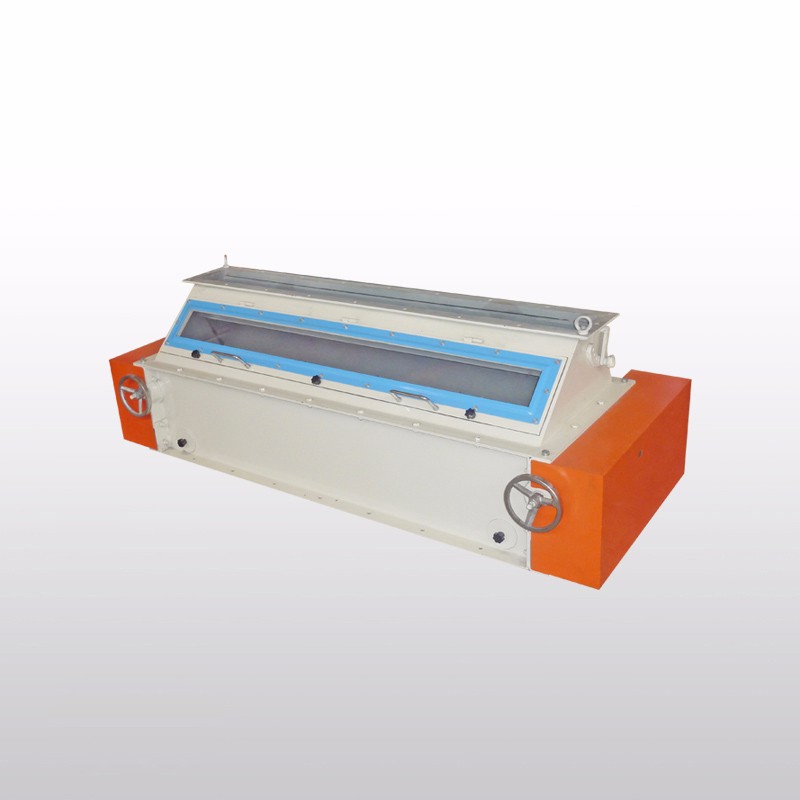

SSLG Series Double-roller Crumbler
SSLG系列雙輥碎粒機
Features
1. Its specific purpose is to crumble big pellets into small ones which size is 0.6~ 1.5mm or 1~2.5mm;
2. Compact structure, evenly size granulates, convenient and quick adjustment;
3. Rolls perform differential rotational speed. Pellets are pressed, sheared and torn, thus reaching ideal crumbling effect;
4. Unique feeding hopper and bypass device not only serve to distribute the products, but also serve to bypass the products not requiring crumbling. When bypassing, automatic stoppage is realized through limit switch;
5. V-shape belt driving is adopted. It is stable, low noise, reliable and easy to operate.
Main Technical Parameters
Model Parameters | SSLG15×80 | SSLG15×100 | SSLG15×150 | SSLG20×170 |
Output(t/h) | 3-4 | 4-6 | 5-8 | 15-20 |
Power(kw) | 4 | 5.5 | 7.5/11 | 11/15 |
