產品特點

1、高效的一級齒輪傳動，保證能量的最大轉移；
2、全不銹鋼喂料器，變螺距防結拱機構，采用進口變頻調速控制；
3、加大型不銹鋼調質器，采用軸向進蒸汽，大大提高調質熟化時間和效果；
4、高精度的傳動齒輪和齒輪軸采用滲碳淬火，硬齒面磨齒加工，傳動平穩、噪聲低、壽命長；
5、齒輪箱的材質和傳動孔的高精度來自于專業鑄造廠的鑄造技術和數控加工設備的保證；
6、主傳動系統軸承，油封均為進口高品質。且特別設置潤滑回油系統，確保軸承潤滑可靠；
7、環模與傳動輪連接采用三片快卸式精密澆鑄抱箍，環模拆卸方便快捷；
8、門蓋及斜槽為全不銹鋼制造，防腐能力強，使用壽命長；
9、電機與齒軸采用新型蛇形彈簧連軸器，拆裝方便，傳動可靠，效率高。

主要技術及性能參數

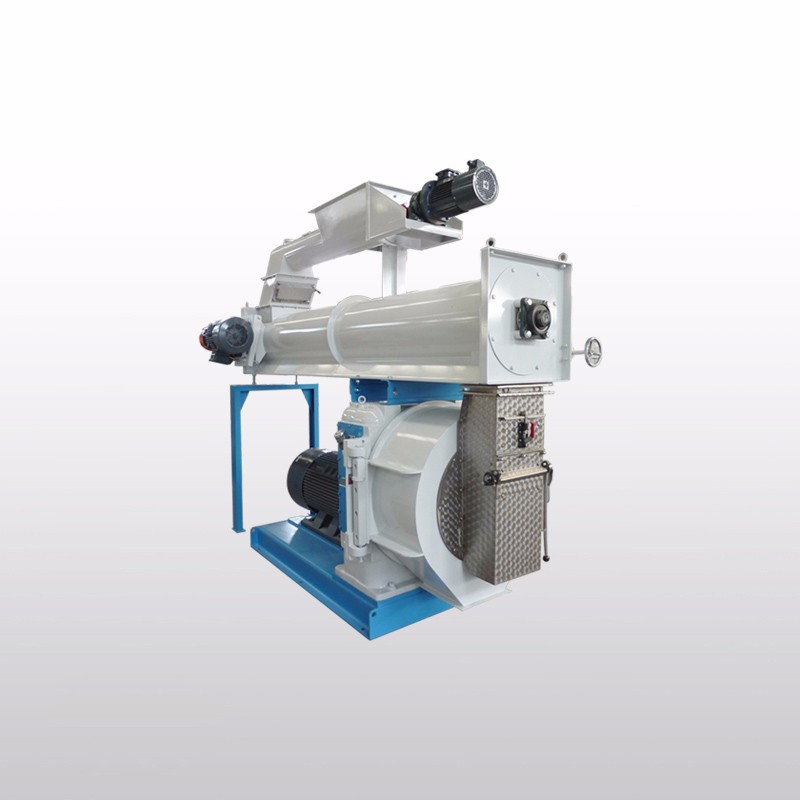

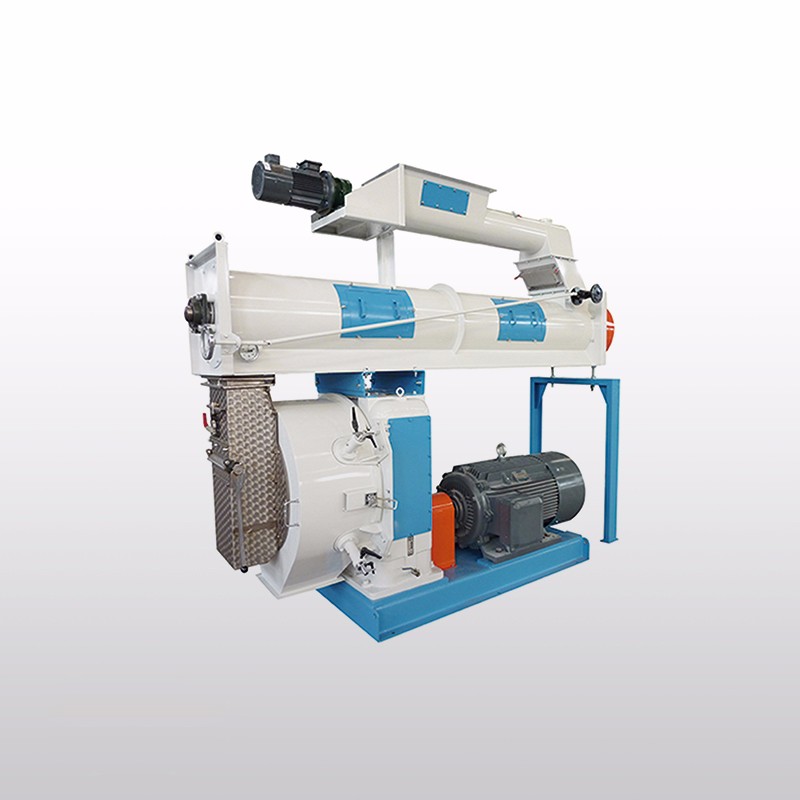

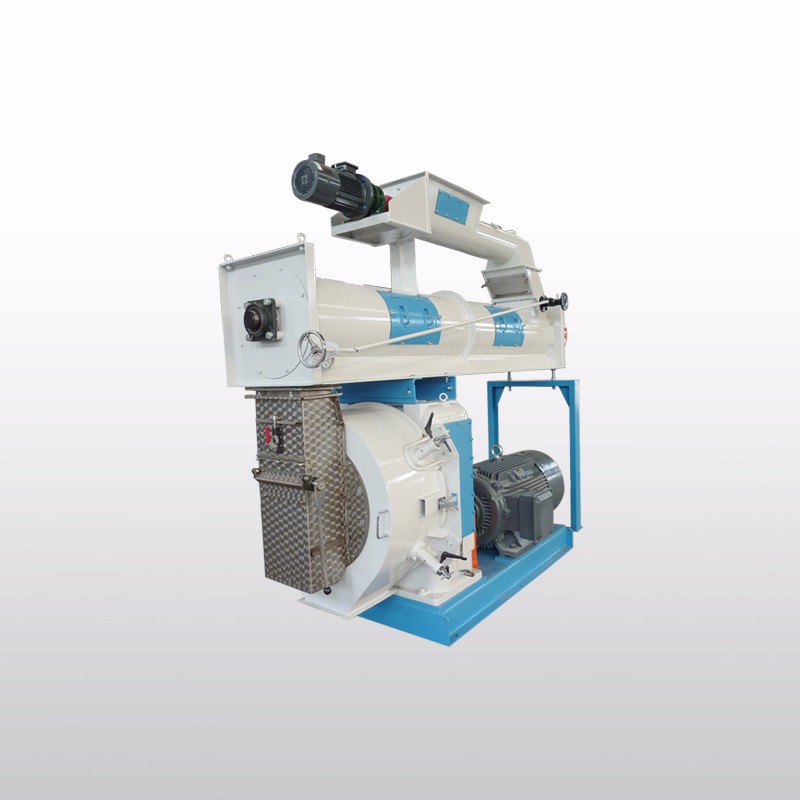

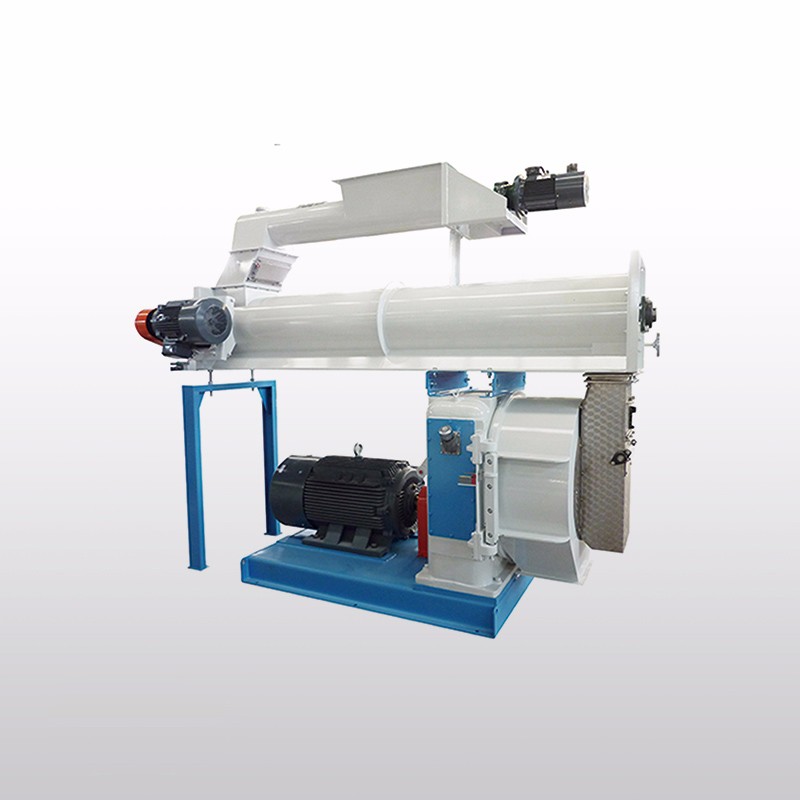

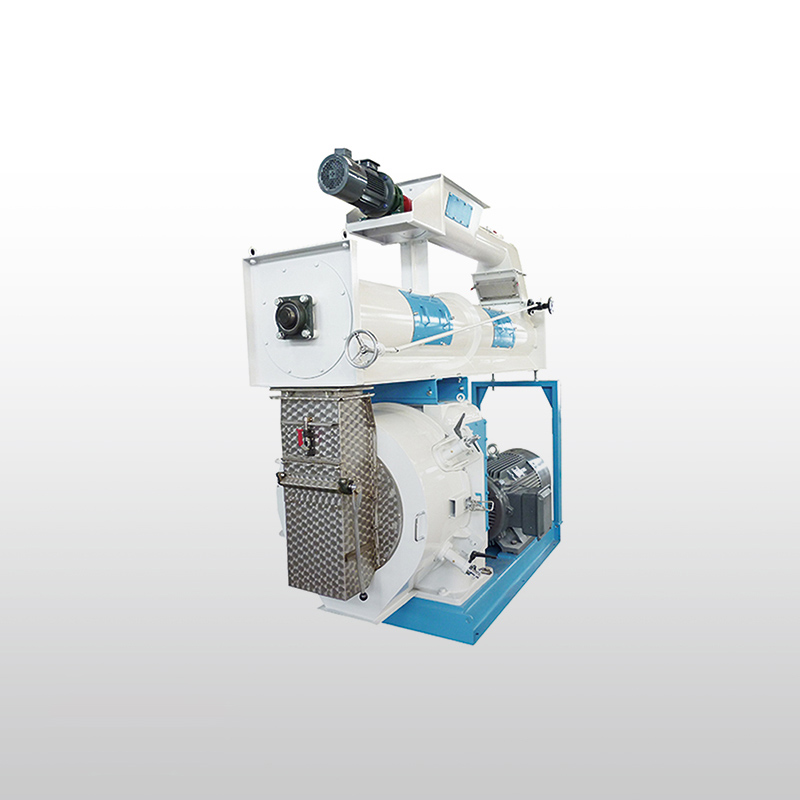

SZLH508b2 High Grade Livestock Feed Pellet Mill

SZLH508b2高檔畜禽型環模制粒機

Features

1. Gear directly-connecting driving is adopted for high efficiency;
2. Full stainless steel feeder; variable pitch anti-bridging structure; Imported FC control;
3. Full stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;
4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; smooth driving, low noise and long service life;
5. Gearbox and driving holes’ accuracy are guaranteed by specialized casting supplier and CNC;
6. The bearing and oil seal in the main drive are imported, and a specialized lubrication oil return system is available to ensure reliable bearing lubrication;
7. 3pcs of quick disassembling type precisely-cast die clamps are adopted to connect the die and quill flange, resulting in convenient and quick disassembling of die;
8. Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and long service life;
9. The connection between motor and gearbox adopts new type S-shape spring coupling for more convenient disassembling and assembling and more reliable use.

Main Technical Parameter
